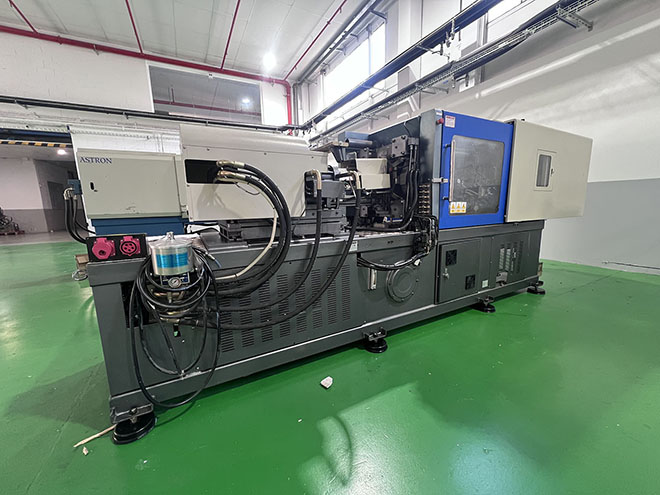

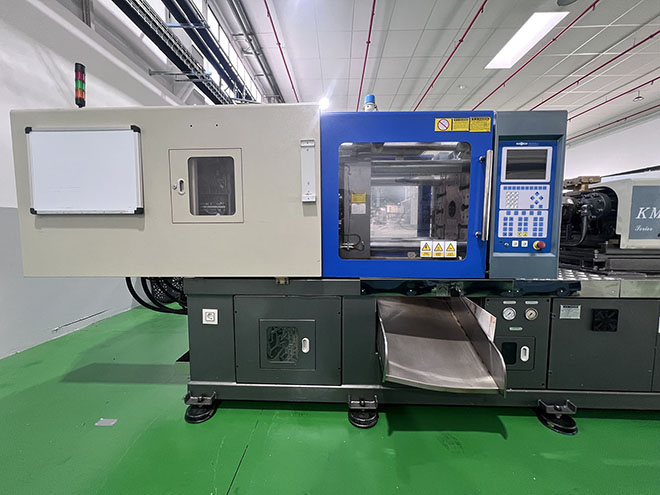

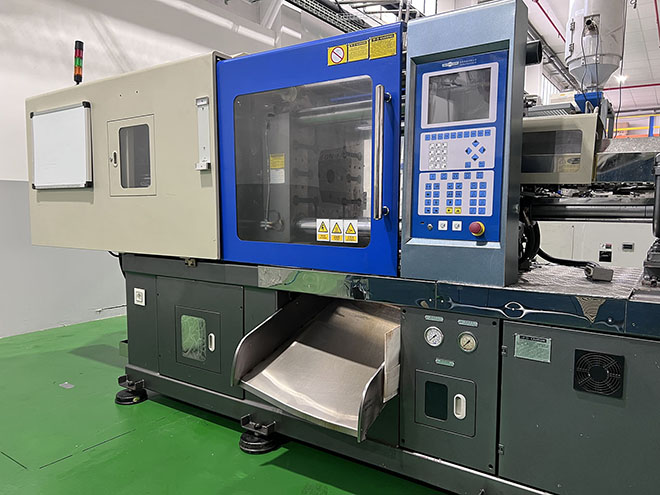

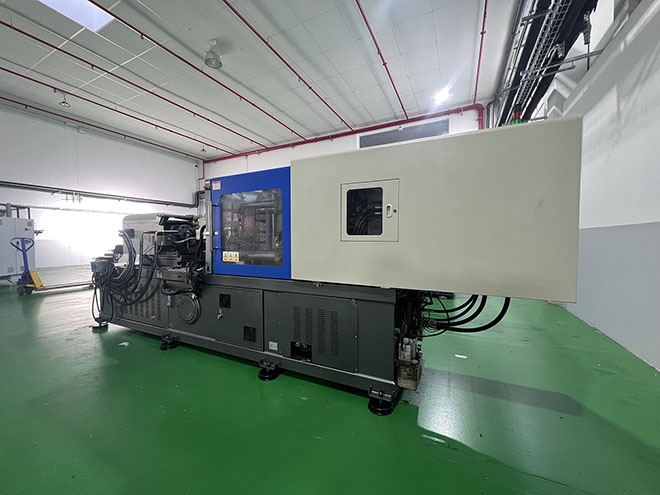

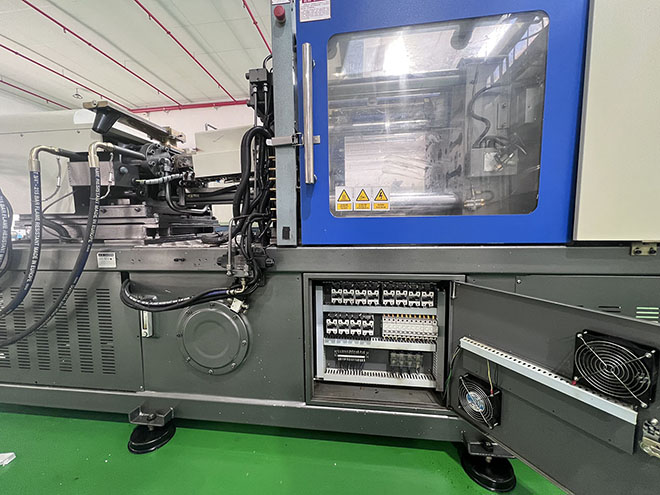

INJECTION MOULDING MACHINE

Reference: PFP-001
Type: PD128-KX
Name: INJECTION MOULDING MACHINE
Year: 2013
Brand: KAI MING
Width: .
Description: Injection moulding machine

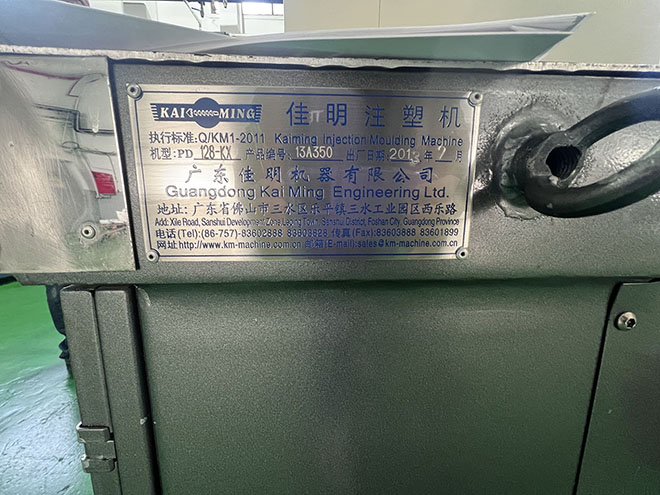

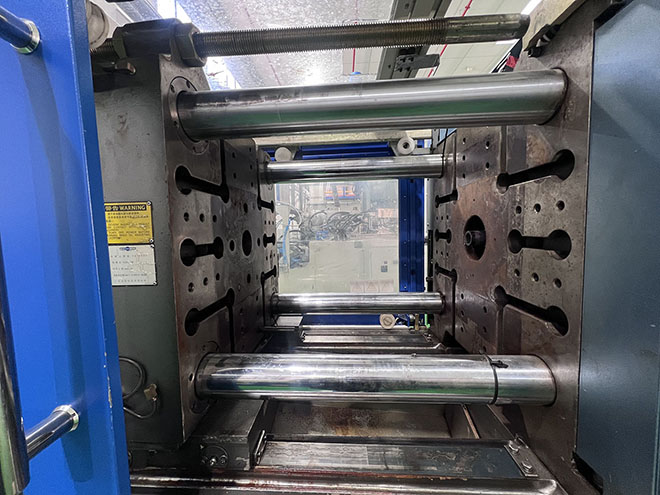

Clamping force: 128 t. Tie-bar spacing: 410 × 410 mm. Machine no. 13A350

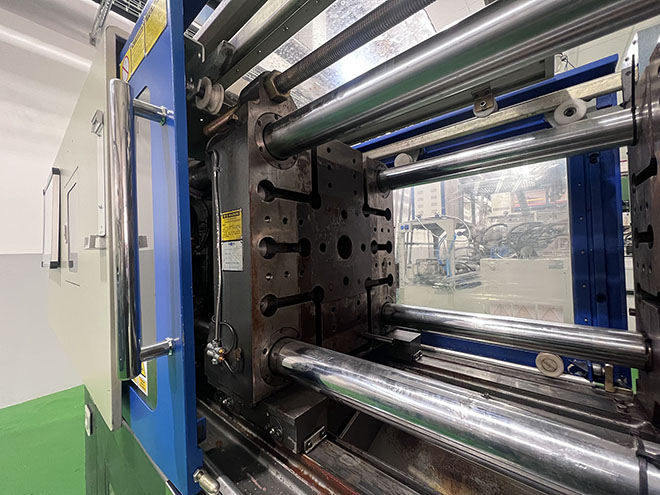

Platen size: 650 × 652 mm
Mold height (min–max): 140–440 mm. Opening stroke: 360 mm. Ejector stroke: 95 mm. Ejector force: 4 t. Screw diameter: 42 / 47 / 53 mm. L/D ratio: 21.9 / 19.6 / 17.4 Injection weight (PS):
Diam. 42: 216 g. Diam.47: 271 g. Diam.53: 344 g. Injection volume: 235 / 295 / 375 cm3. Injection pressure: 2005 / 1600 / 1260 kg/cm2. Injection stroke: 170 mm. Screw rotation speed: 0–200 rpm. Machine dimensions (L × W × H): 5.0 × 1.2 × 1.88 m
Machine weight: 4500 kg.
