WOOD CARPENTRY / MOULDER

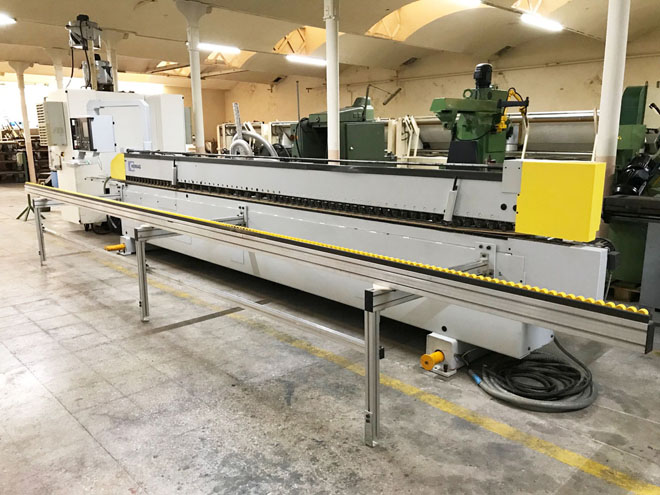

AUTOMATIC POSTFORMING MACHINE

Reference: CCT-005

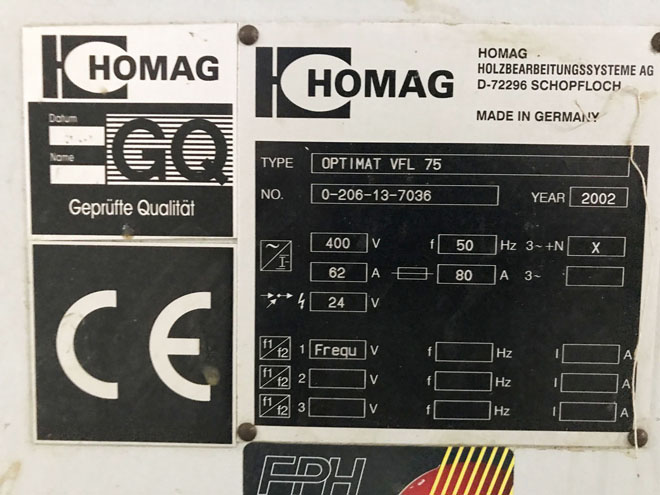

Type: OPTIMAT VFL75
Name: AUTOMATIC POSTFORMING MACHINE
Year: 2002
Brand: HOMAG
Width: .
Description: Automatic postforming machine.
Thickness of the piece max. 45 mm
Length of the pressing area 1700 mm

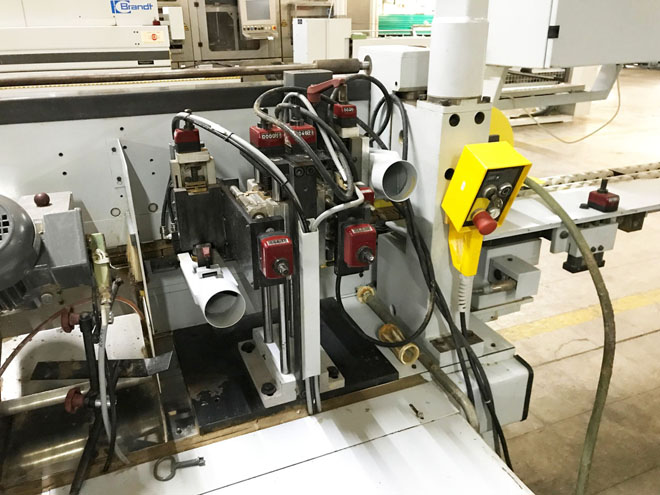

Roller and glue application nozzles.
PVAc glue system

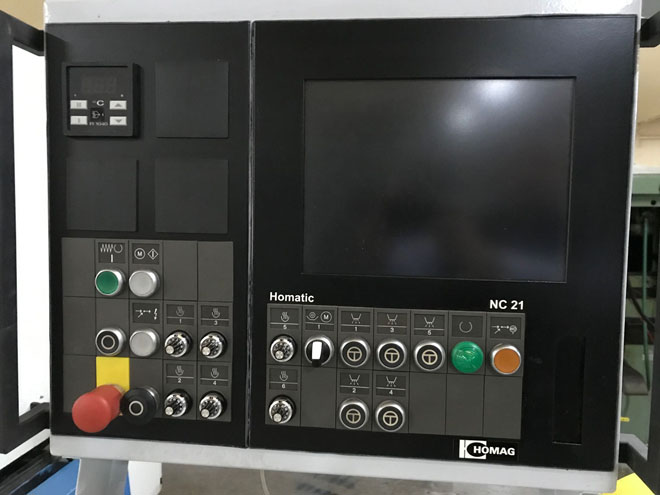

Machine control HOMAG HOMATIC NC 21
Thickness of the piece min. 16 mm
Length of the piece min. 700 mm
Width of the piece min. 150 mm
Extension of the max. 110 mm
Overlap width 35
Laminated thickness max. 110 mm
Radio min. 6 mm
Radio max. 22 mm
Advance max. 18 m / min
Continuous variable power
Postformed single-sided

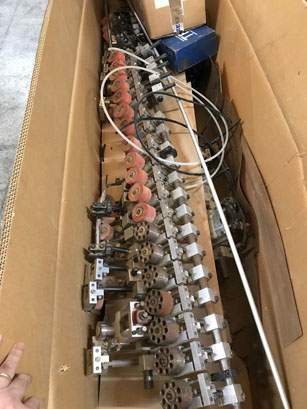

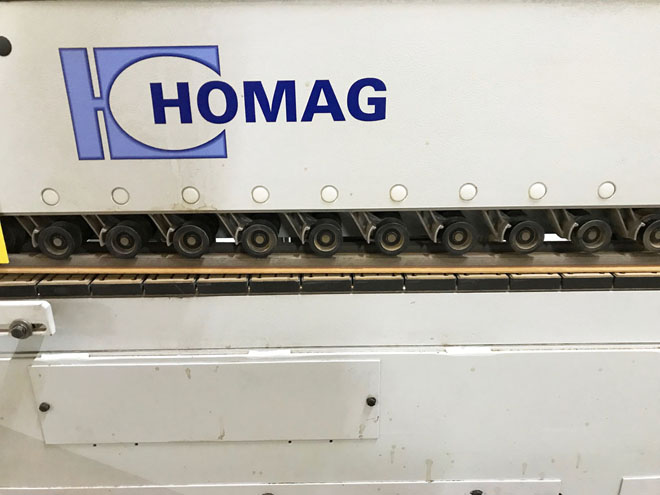

Pressure rollers
Preheating zone
Declaration of conformity CE
Consumption: 35 KW
